Secure storage solution for Lithium-Ion energy storage systems
SEDA HV Battery Container Simple

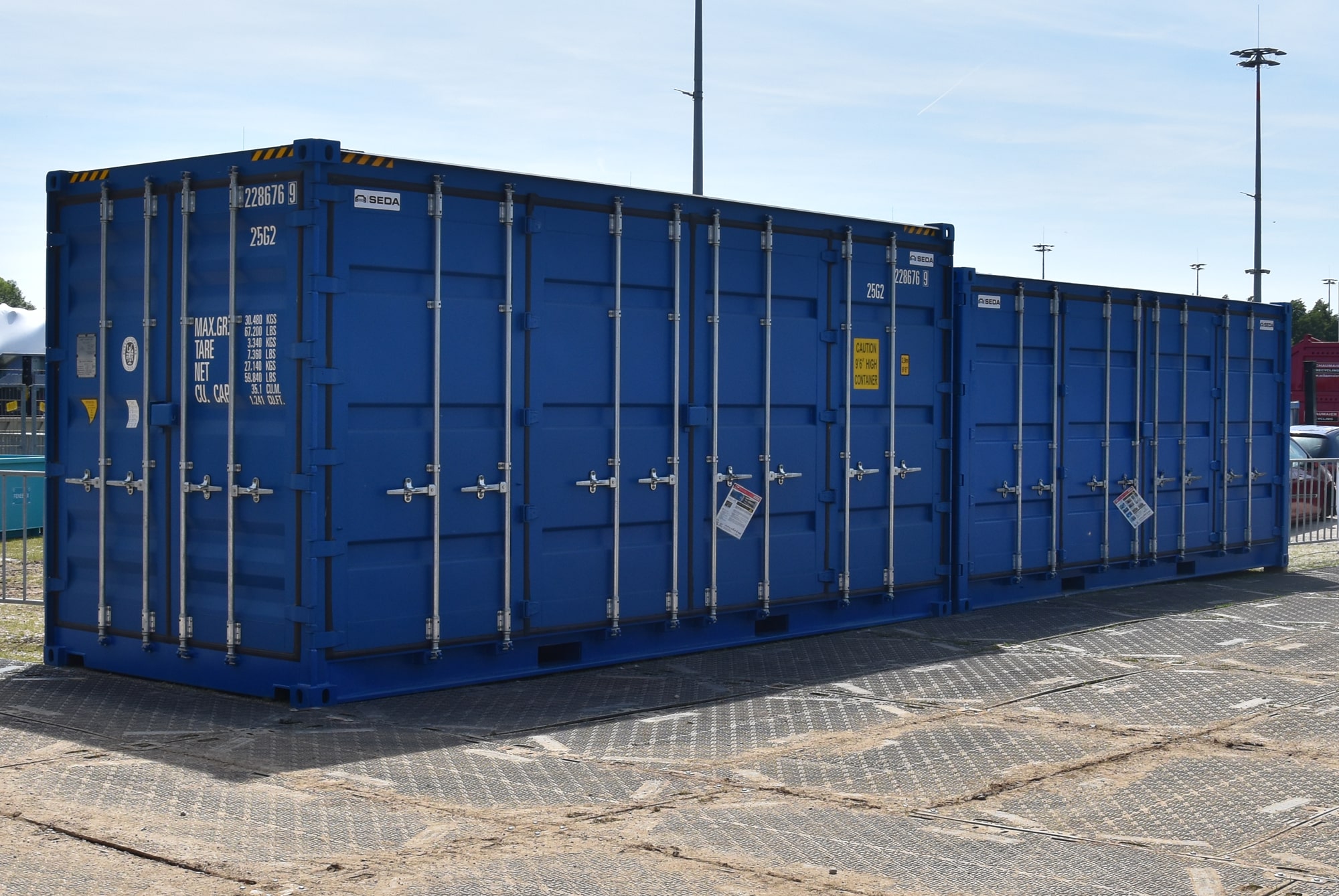

The SEDA HV-Battery Container Simple is a 20-foot container with side opening, designed to ensure the safe storage of energy storage systems.
Version with floor grating: wooden flooring available upon request. Recommended minimum distance to the nearest building is 5 meters.
Technical Data
| Container length | 6.058 mm |
| Container width | 2.450 mm |
| Container height | 2.591 mm Standard 2.896 mm High Cube |
| Compartment width | 2.700 mm |
| Compartment depth | 2.200 mm |
| Compartment height (adjustable) | 740 mm Standard 770 mm High Cube |
| Weight | appr. 4.182 kg |
Order Number
| A-527943 | SEDA HV Batterie Container Simple High Cube |
| A-527958 | SEDA HV Batterie Container Simple Standard |
| Optional | |
| C-527953 | WX5700 Aerosol extinguishing system |
| C-90040 | SBM – Smart Battery Monitoring |
Downloads
Benefits
- Designed for lithium-ion energy storage systems

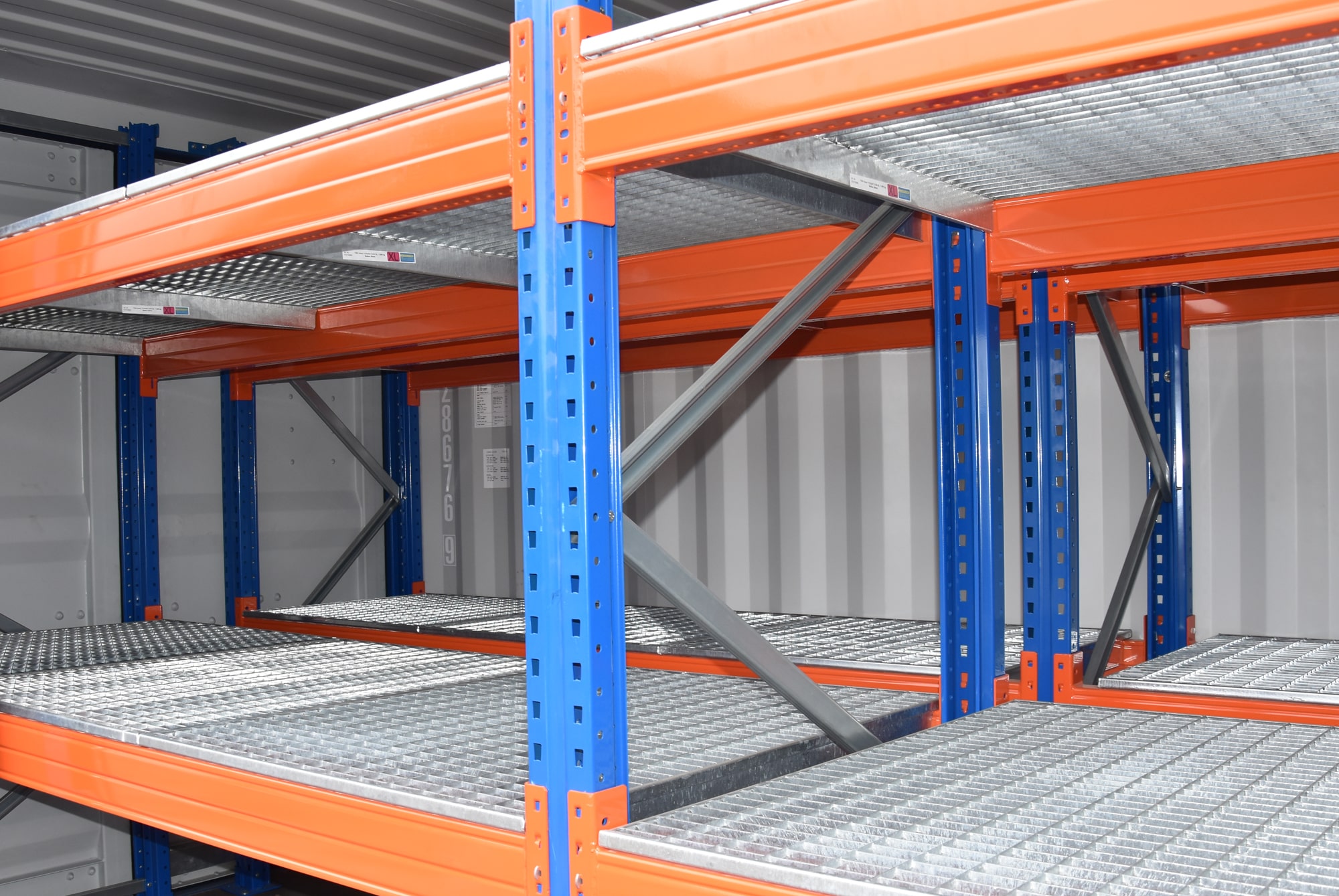

- Shelving with 6 compartments in a single container
Video
