SEDA HV E-Car Lift
The 2-post lift is specifically designed for tasks involving vehicles with high-voltage batteries. Additionally, it allows the vehicle to be submerged in a coolant bath (water or an alternative coolant) if necessary.
Technical Data
| Surface-mounted lift Swing Arm: DUPLEX 4.6 | |
| Load Capacity | 14.330 lbs |
| Post spacing | 92.52″ |
| Usable lift | 81.65″ |
| Swing-in height | 5.91″ |
| Drive-through width | 93.31″ |
| Cylinder diameter | 4.84″ |
| Installation depth | 94.80″ |
| Motor power | 3 kW |
| Electrical connection | 400 / 16 V / A |
| Lowering time | approx. 35 sek |
| In-ground lift 4-Post Track: ALU TRACK 4.65 | |
| Load Capacity | 5617 lbs |
| Working platform | 24.11 x 8.36 x 3.16 ft |
| Basin depth | 22.97 x 7.71 x 2.62 ft |
| Motor power | 3 kW |
| Electrical connection | 400 / 16 V / A |
Order Number
| A-527844 | SEDA HV E-Car Lift with coolant bath |
Downloads
Benefits
- 2-Post Lift for specialized electric vehicle handling
- Manual or automatic flooding system
- Optional warning system for remote monitoring
- Minimize risks
Video
Additonal information
Step 1:

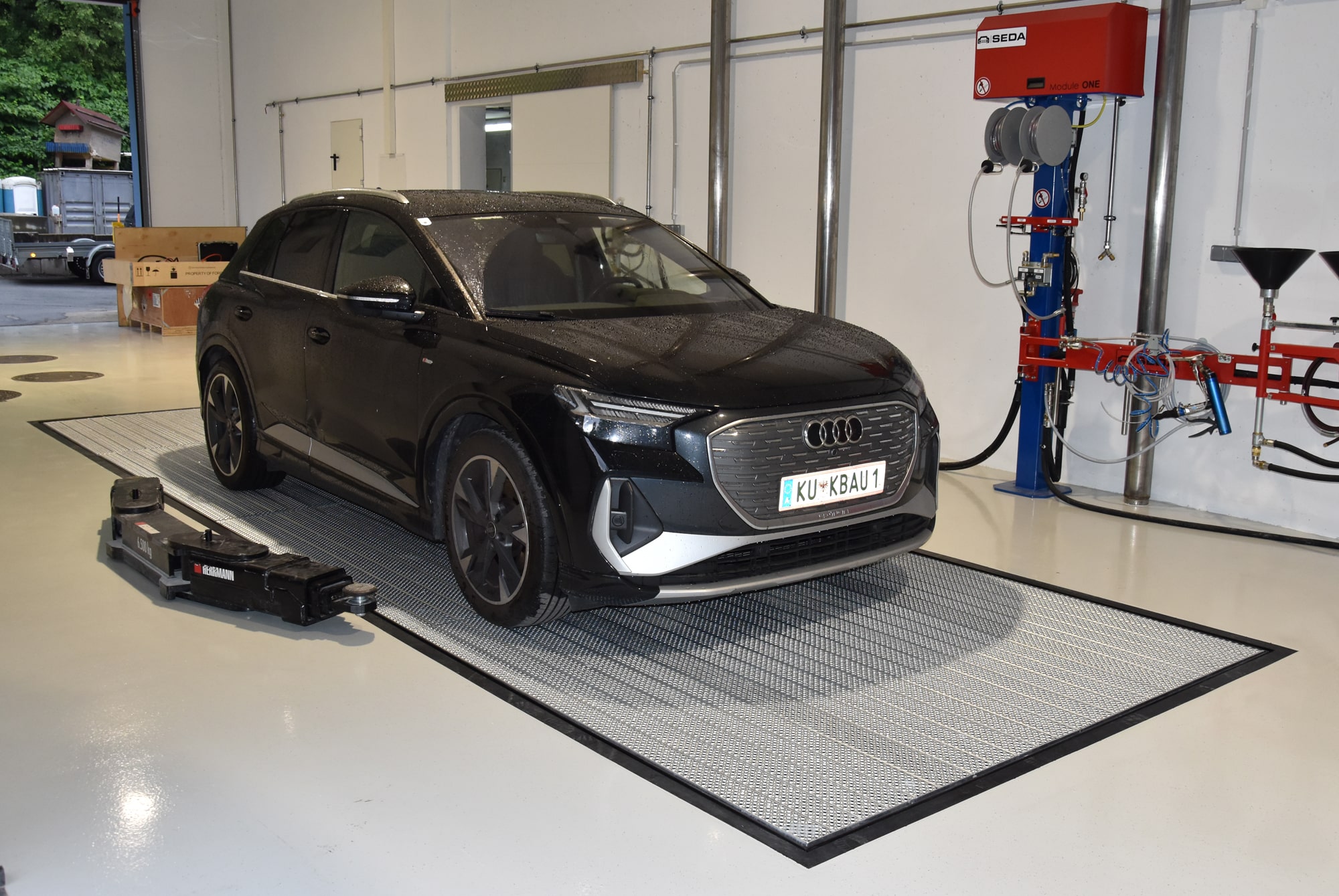

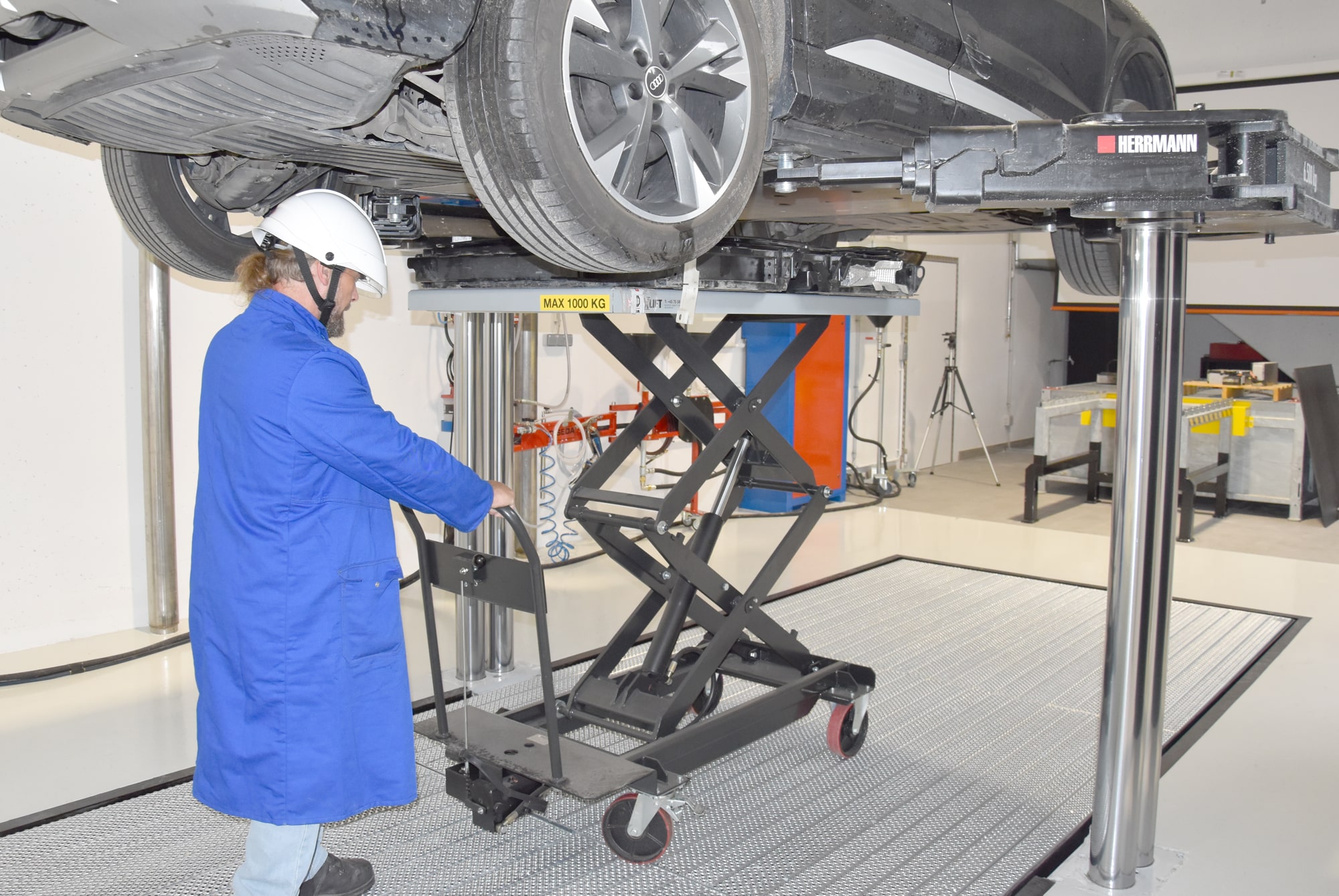

The vehicle is positioned on the lift, either by driving, pushing, or using a winch or chainhoist. For damaged or immobilized vehicles, a dolly or trolley can be used to improve maneuverability.
Step 2:

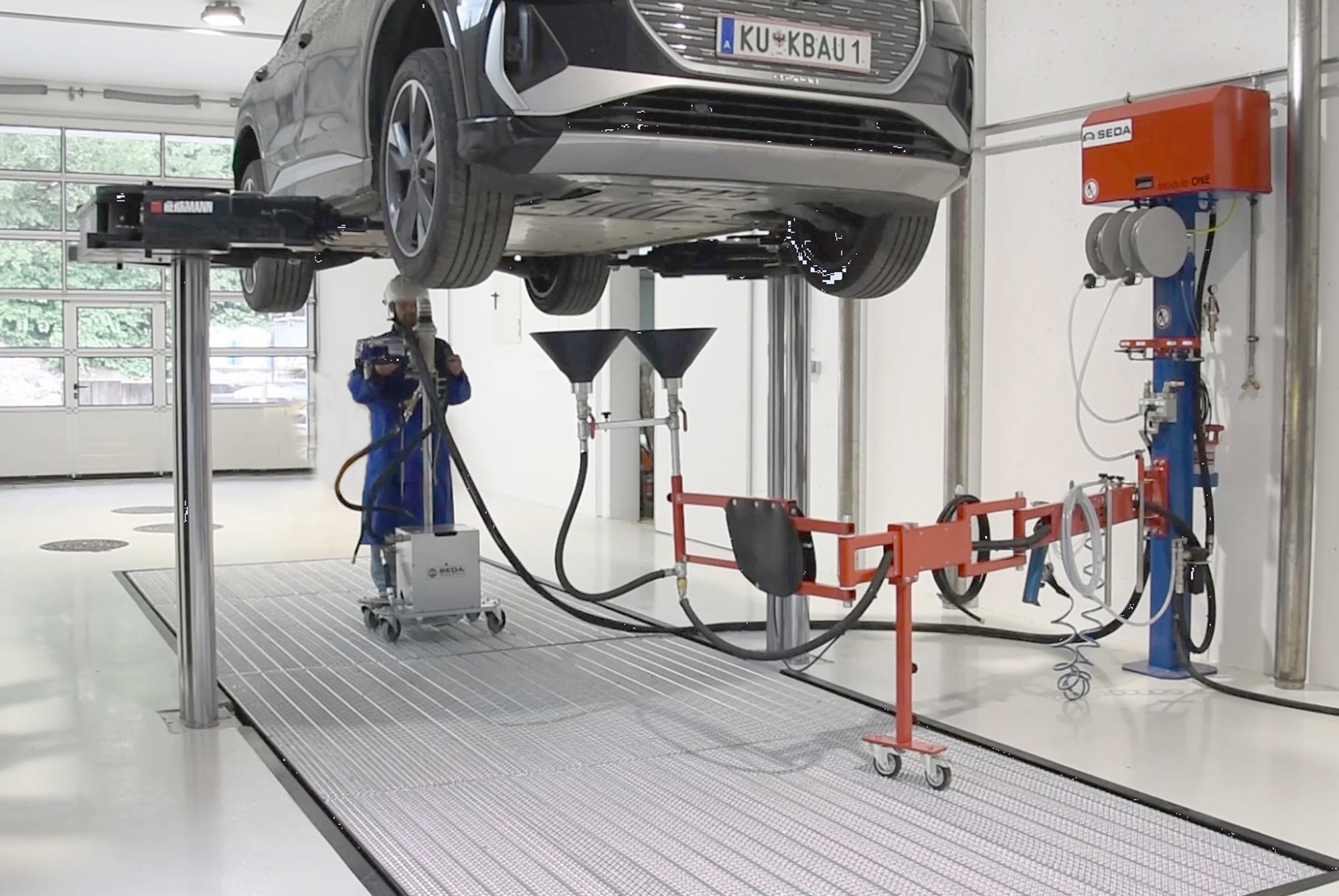

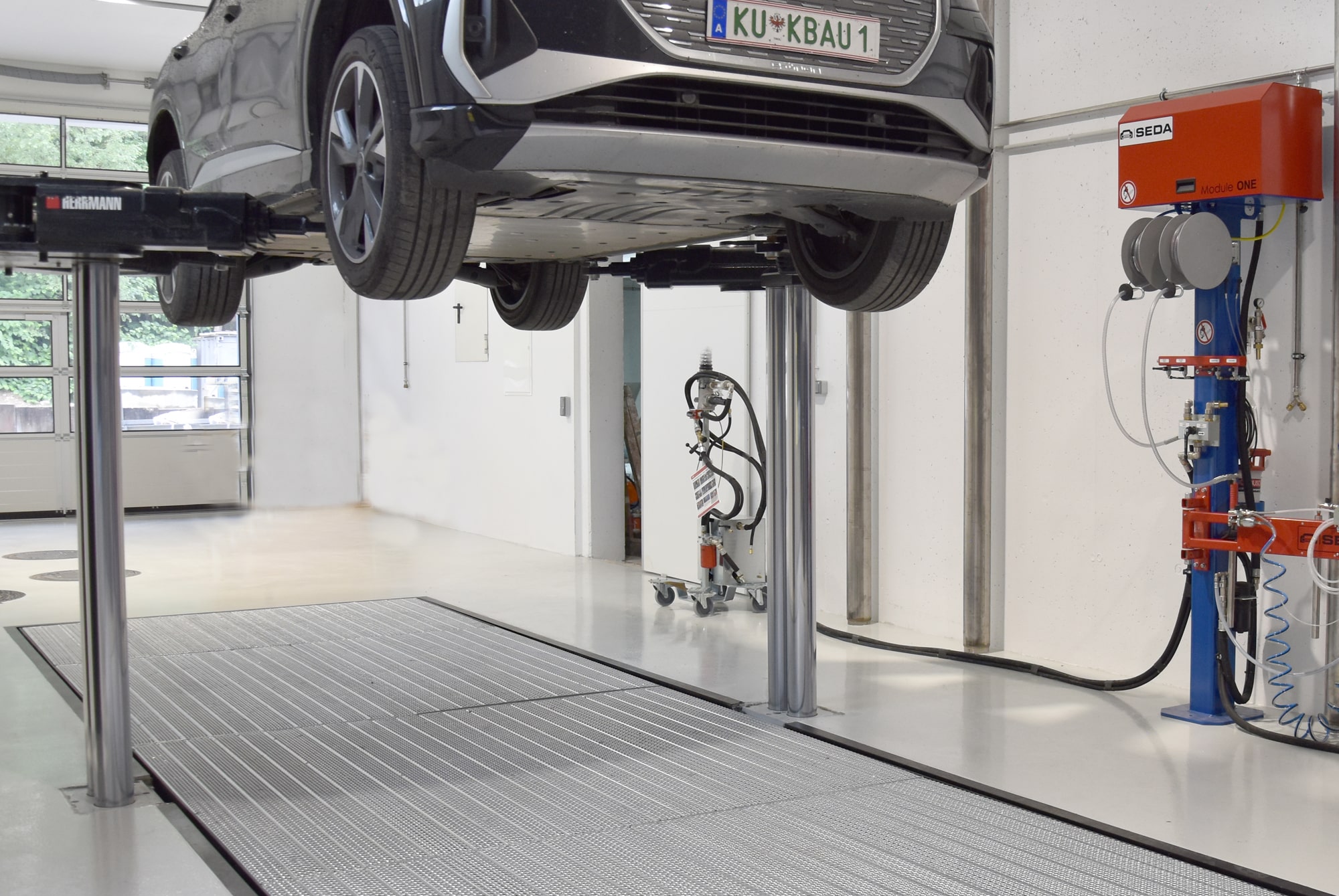

The vehicle is then raised using the adjustable swing arms mounted on the lift columns. It is elevated to the desired working height to perform repair, maintenance, or disassembly tasks.
Step 3:
In case of a potential hazard, the vehicle can belowered to a safer level.
Step 4:

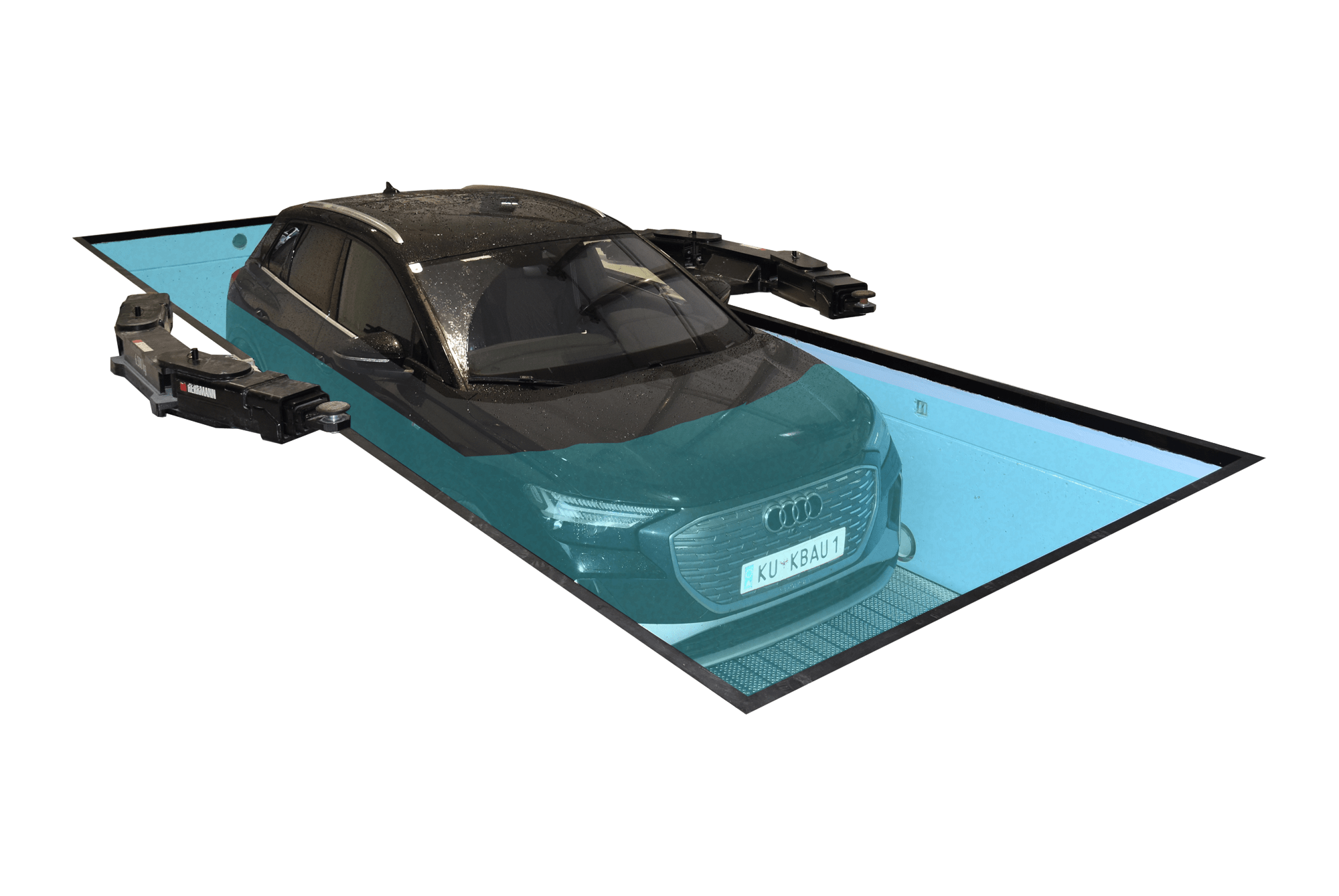

If the energy storage system reacts, the flooding system can be activated either automatically or manually. This minimizes the risk of an uncontrolled reaction of the high-voltage battery that could lead to a fire.
